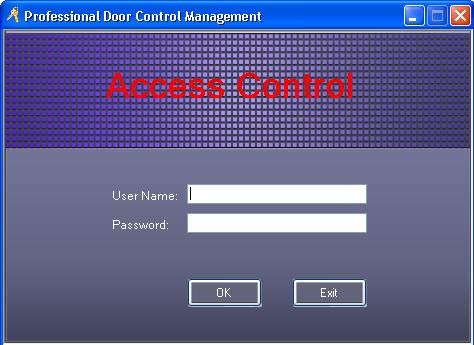

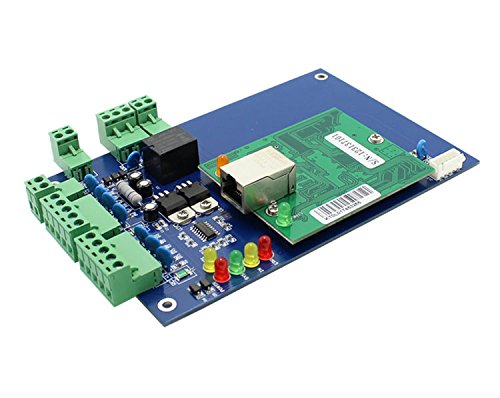

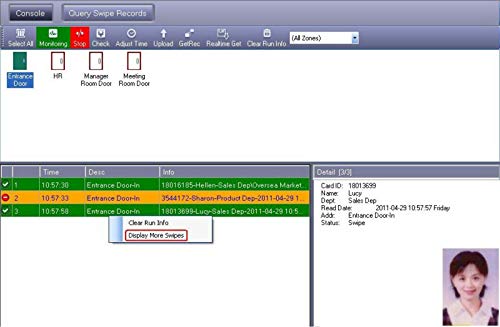

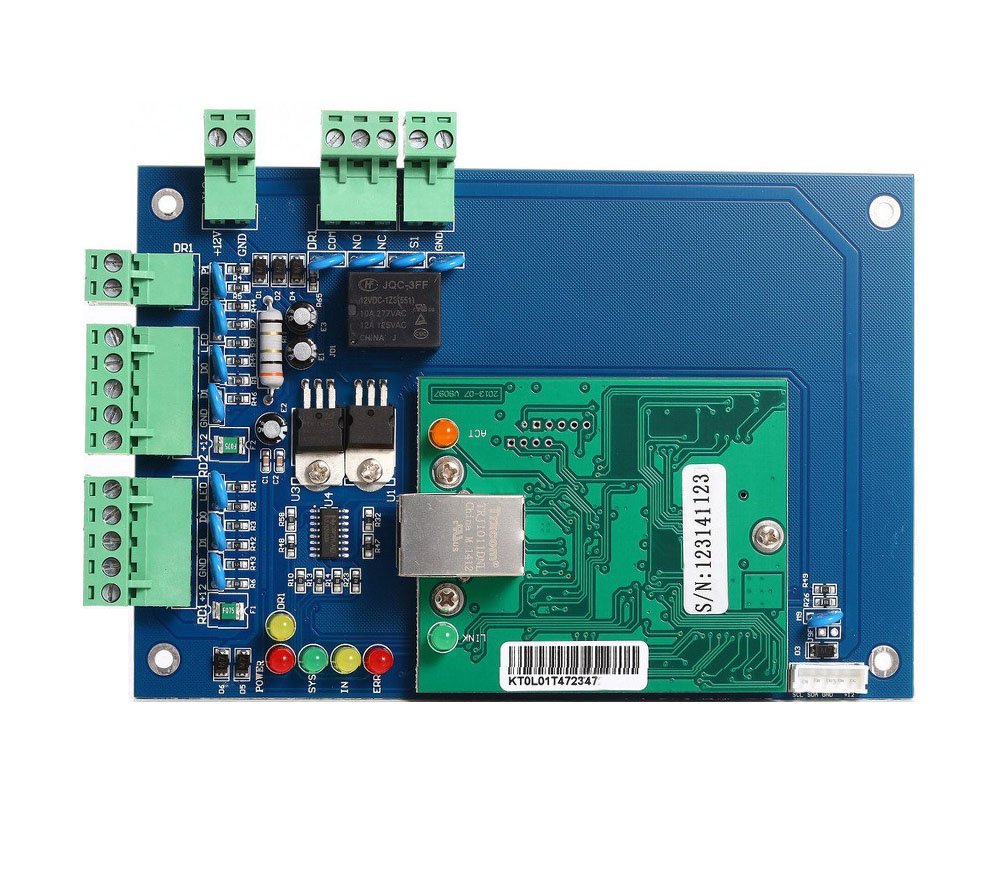

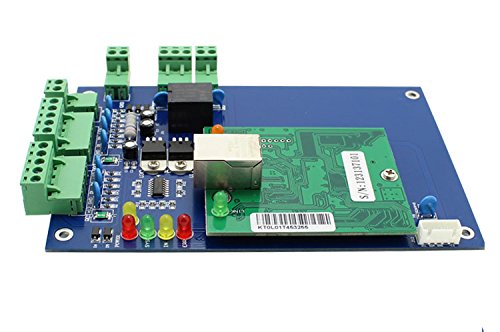

Software Supports Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system. We provide video guide+Detail wire diagram,so you can easily setup System. Package include: 1 x Access control panel for 1 door 1 x User manual with Detail Instruction/Wire diagram/Video Guide MENGQI-CONTROL Professional Single Door Wiegand 26 bit TCP/IP Network Access Control Board Panel Access Controller Feature: Communication:TCP/IP(RJ45)English Software supportable database:Access or SQL ServerDescription Control: 1 door, get in by swiping card, get out door by buttonPower Supply:12VDC;4-7APower Consumption of Circuit Board Less than 100mAInput Format of Reader: Wiegand 26/Wiegand34 (All card reader with compatible protocol, RFID/Mifare/HID)Quantity of Readers: 2 pcs to SupportDoor Controlled: 1 door control to SupportDoor opening time extending setting:1-600 Seconds(adjustable)Max quantity of controller:UnlimitedOperation Temperature:-40C-70COperation Humidity:10-90 % RH , No CondensationUser Capacity :20,000 UsersLog Capacity:100,000 event buffers Sepecification: Door Opening Time Extending: Setting: 1~600 seconds (adjustable)Max Quantity of Controller: Unlimited (Remark: N denotes q'ty of computer serial port or q'ty of 485hub port, support 256pcs ports)Quantity of Users: 20,000 usersQuantity of Event Buffers (offline): 100,000 event buffersMax Distance from Reader to Controller: 100m/328ft (suggestion distance 80m/262ft)Collocations: PCB board,case,power,power line,erial port communication line,software,manual,certificate,key(2pcs),cartonAlarm for Long Time Door Open, Unlawful Entry, IntimidateFire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarmCompulsive open and close door at long time: YesOpen door in remote distance: YesInter block: YesAnti pass back and tail: YesMulti card open door: YesOpen long time at specified time: YesUrgency locking: Yes Sofeware Diagram
